Water Level Controller

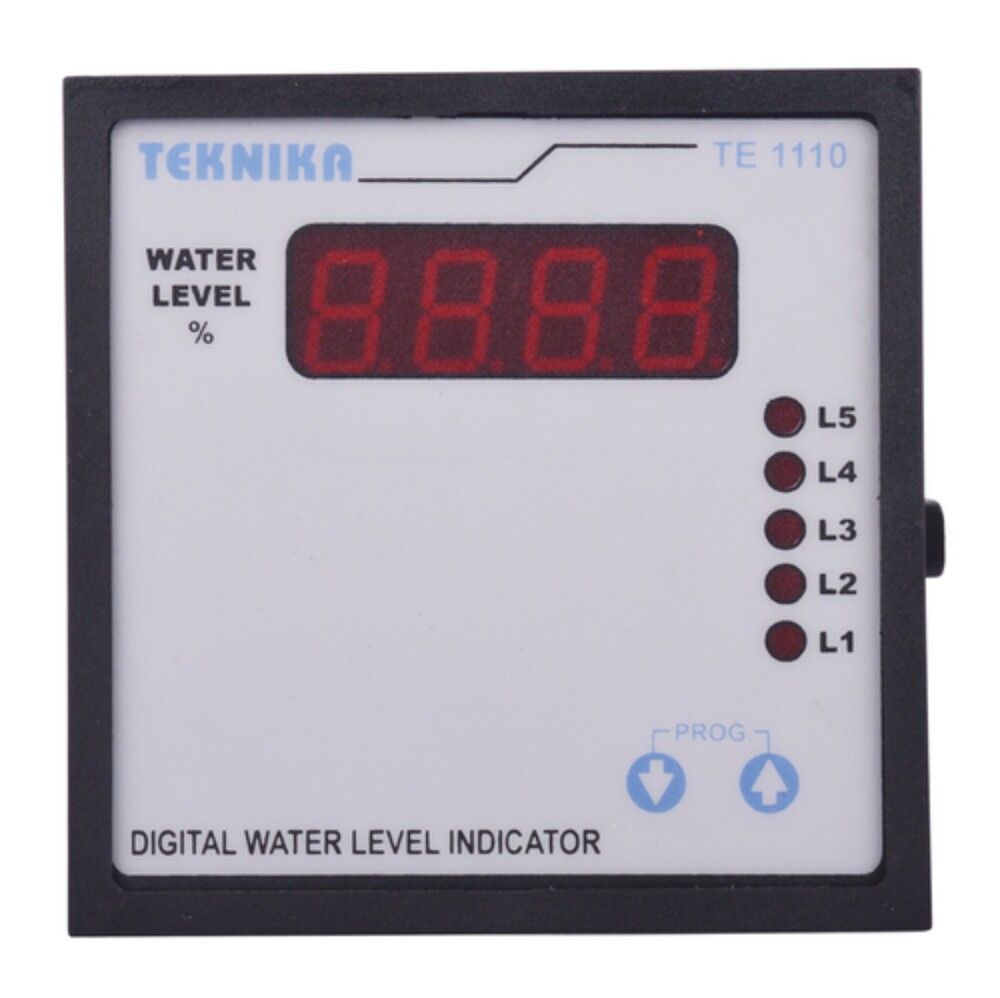

Teknika TE 1110 Pump Indicator cum Controller / Water Level Controller Relay finds

application in automatic on and off of pumps and display of various water levels. The Relay

senses the liquid levels in tanks at ground level or overhead / on building top etc. Five to eight level

sensing ensures Various models are available.

LED indications are provided to indicate at various levels L1 to L5.

The digital indicator indicates the % in the tank when water is at the level of probe.

Eg 0, 20%, 40% 60% 80% 100% when probes are set equally at these levels in the tank. This is

the default setting.

These levels are programmable and the probes can be set at whatever levels desired by user and that % programmed as desired.

A potential free contact is energized when the level is below L1 and above L5. This is the

default value.

The below level and above level relay energisation is also programmable. Lo level, Hi

level are programmable between L1 and L5. However L5 has to be above L1.
