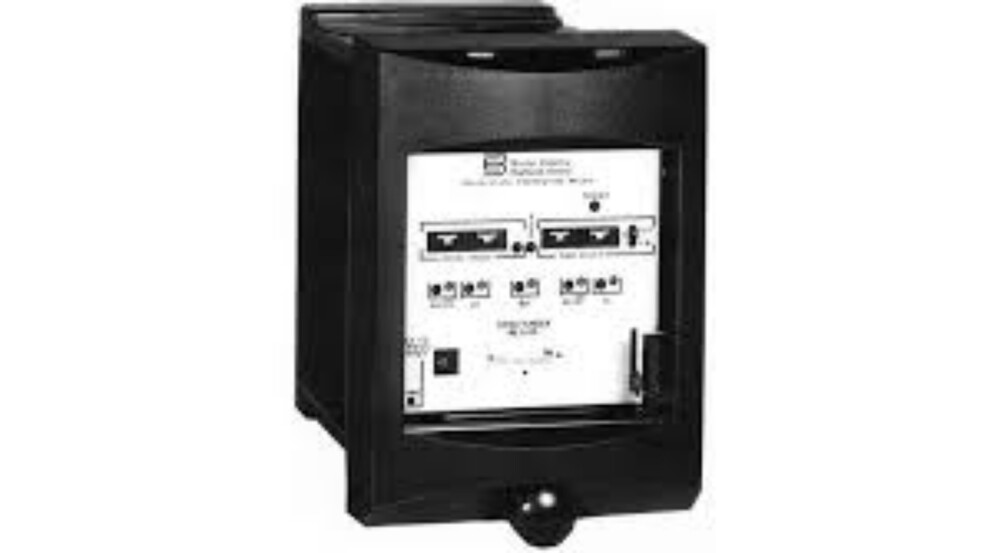

Check Synchronising Relay

Get a Price/Quote

MOQ : 1 Unit

Check Synchronising Relay Specification

Mechanical Life
10 Million Operations

Contact Form
SPDT

Dielectiric Strength
2kV AC for 1 minute

Coil Voltage
230V AC

Coil Power
2W

Power Consumption
Approx. 3VA

Contact Material
Silver Alloy

Contact Resistance
<50m

Product Type
Electromechanical Relay

Insulation Resistance
>100 M at 500V DC

Theory
Electromechanical

Usage
Used for synchronising generators with main power supply

Contact Load
5A at 230V AC

Operate Time
<200ms

Rated Voltage
230V AC

Supply Terminal
L and N

Size
Standard

Color
Grey

Dimension (L*W*H)
145mm x 90mm x 65mm

Weight
Approx. 400g

Check Synchronising Relay Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1000 Units Per Week

Delivery Time
3 Days

About Check Synchronising Relay

Check Synchronous Relay is used for manually paralleling of gensets by matching voltage, frequency and phase angle. We manufacture the same for our highly respected clients. Zero crossover can be detected manually. Check Synchronising Relay gives a breaker close indication. Generator breakers are to be closed manually. We test this on different parameters to ensure its smooth functioning, durability, efficiency, effective usage and easy installation. We have hence gained high rising applaud and demands from our clients in national and international markets.

Reliable Generator Synchronization Solution

This synchronising relay is essential for accurately connecting generator outputs with the main power supply. Its fast response time and high contact reliability ensure continuous and stable electricity transfer in demanding environments, minimizing operational risk and facilitating smooth power transitions during critical moments.

Exceptional Durability and Electrical Performance

Built with a silver alloy SPDT contact and a tough electromechanical framework, the relay withstands heavy-duty usage. The high insulation resistance, superior dielectric strength, and excellent mechanical life expectancy of over 10 million operations make this product suitable for long-term and intensive applications.

FAQs of Check Synchronising Relay:

Q: How does the Check Synchronising Relay facilitate synchronisation between generators and the main power supply?

A: The relay monitors voltage and synchronization parameters, ensuring that both the generator and main supply are matched before connection. Upon detecting suitable conditions, it closes the contact within 200 milliseconds, enabling a safe and seamless transfer of power.

Q: What is the process to install this synchronising relay?

A: Connect supply terminals L and N to a 230V AC mains source. Wire the relay according to your generator and main supply configuration, ensuring all contact connections (SPDT) are secure. Verify insulation and dielectric strength before operation for optimal safety.

Q: When should this relay be used in a power system?

A: This relay should be employed whenever precise synchronization between an alternate power generator and the main power grid is required, such as during grid restoration, power backup switching, or load balancing scenarios.

Q: Where can this relay be utilized most effectively?

A: Owing to its standard dimensions and robust build, the relay is ideal for industrial environments, power plants, and facilities in India needing reliable generator-to-grid synchronization.

Q: What are the key benefits of using this relay?

A: Benefits include high operational safety, rapid response time, prolonged mechanical life, and reduced maintenance, all contributing to stable power delivery and extended equipment lifespan.

Q: How does the relays construction contribute to its longevity?

A: The use of a silver alloy for the SPDT contact ensures minimal resistance (<50m) and corrosion, while the electromechanical design supports over 10 million operational cycles, enhancing longevity.
