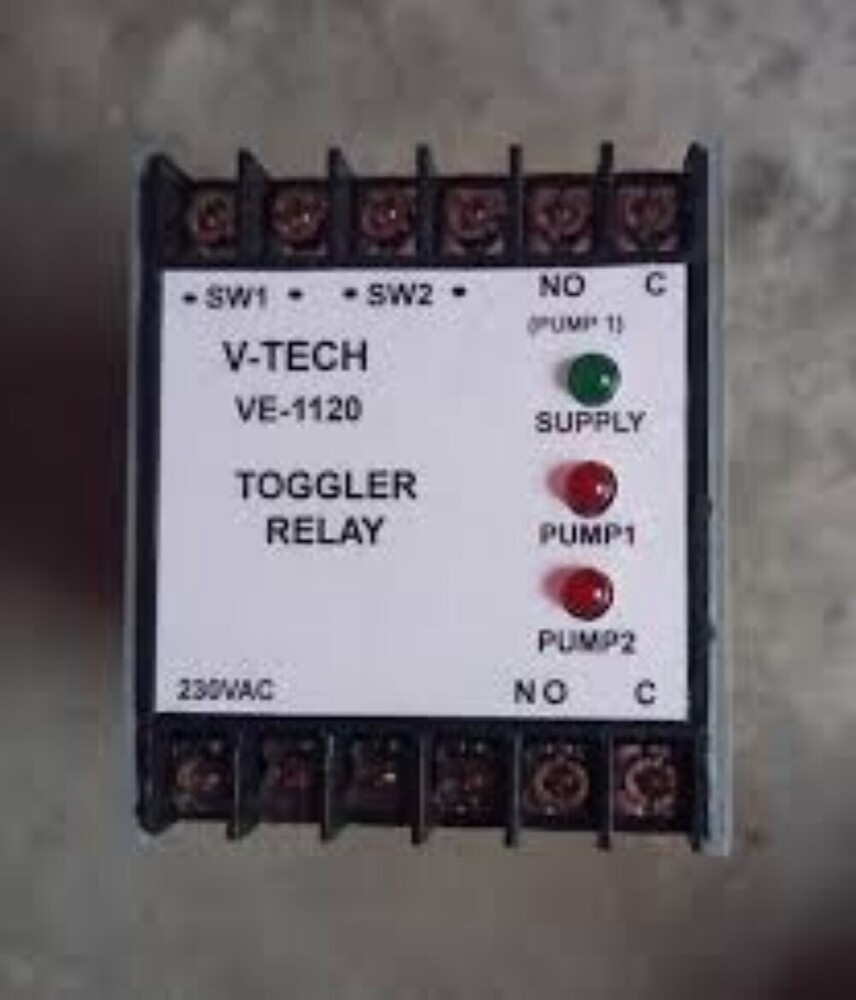

Toggler Relay

Get a Price/Quote

MOQ : 1 Unit

Toggler Relay Specification

Dielectiric Strength
1500V AC (1 min)

Contact Material
Silver Alloy

Mechanical Life
1,000,000 Operations

Contact Resistance
100 m Max.

Ambient Temperature
-20C to +60C

Protect Feature
Sealed Housing

Power Consumption
0.5W

Contact Form
SPDT

Working Temperature
-20C to +55C

Coil Power
0.45W

Coil Voltage
12V DC

Product Type
Toggler Relay

Insulation Resistance
100 M at 500V DC

Theory
Electromagnetic Relay

Usage
Industrial automation, Control panels

Contact Load
5A at 250V AC

Operate Time
10 ms

Terminal Type
Pin Type

Rated Voltage
12V DC

Supply Terminal
Screw Terminal

Size
Standard

Color
Black

Dimension (L*W*H)
55 mm x 35 mm x 22 mm

Weight
50 g

Storage Temperature
-25°C to +70°C

Mounting Type
Panel Mount

Humidity Tolerance
Up to 85% RH

Vibration Resistance
10-55 Hz, 1.5 mm

Shock Resistance
100 m/s², 11 ms

Response Time
Less than 20 ms

Toggler Relay Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1000 Units Per Week

Delivery Time
3 Days

About Toggler Relay

Owing to our rich industrial experience, we have been a well known manufacturer of Toggler Relay to our highly valued clients. It is made up of fine quality raw material at our unit along with the help of ultra modern machinery in sync with the prevailing industrial norms and standards. Toggler Relay goes through varied quality inspections to ensure utmost quality, corrosion resistance, easy installation, durability and a long functional life. We offer this at highly pocket- friendly prices in the market.

Engineered for Industrial Environments

Built with a sealed housing and rugged black finish, this relay delivers dependable performance in industrial settings prone to shock, vibration, and fluctuating temperatures. Its robust design meets rigorous operational demands, making it a trusted choice for automation and control applications in factories and processing plants.

Versatile Installation and Reliable Performance

Featuring a convenient panel mount configuration, the toggler relay allows straightforward installation in standard control panels. Its industry-standard pin and screw terminals facilitate quick wiring, while the SPDT contact form ensures versatile switching for various automation requirements. The silver alloy contacts enhance durability and conductivity.

Superior Electrical Safety and Longevity

Safety is prioritized with high insulation resistance, 1500V AC dielectric strength, and sealed housing for dust and moisture protection. With a contact resistance of 100 milliohms maximum and a minimal power consumption of 0.5W, the relay offers prolonged electrical reliability and energy efficiency, supporting over a million mechanical operations.

FAQs of Toggler Relay:

Q: How is the toggler relay installed in a control panel?

A: This relay is designed for panel mounting using standard hardware. Simply align the relay with the designated panel cutout, secure it in place, and connect the pin or screw terminals according to your applications wiring diagram.

Q: What are the environmental limitations during relay operation?

A: The relay performs reliably within ambient temperatures of -20C to +60C and can be stored between -25C and +70C. It also tolerates relative humidity up to 85% and withstands vibration (10-55 Hz, 1.5 mm) and shock (100 m/s, 11 ms) for challenging industrial settings.

Q: When should this relay be used in automation systems?

A: It is ideal for integration into industrial automation systems, control panels, and machinery that require rapid, dependable switching (response time <20 ms) and robust environmental resistance. Its SPDT contact configuration supports a wide range of control and signaling tasks.

Q: Where can this relay be sourced or supplied?

A: Manufacturers, suppliers, and traders based in India provide this relay. For procurement or technical support, reach out to authorized distributors specializing in automation and control components.

Q: What is the process for connecting the relay terminals?

A: For electrical connections, use the screw terminals for power supply and pin terminals for signal and load. Refer to the relays datasheet for correct terminal identification and ensure secure, insulated wiring for optimal performance and safety.

Q: What benefits does the sealed housing offer?

A: The sealed housing protects internal components from dust, moisture, and contaminants, helping to prolong relay life and maintain consistent performance even in harsh industrial environments.

Q: How does the relay ensure electrical safety and reliability?

A: With an insulation resistance of 100 M at 500V DC and dielectric strength of 1500V AC for 1 minute, the relay prevents electrical leakage and breakdown, providing high safety standards for both personnel and equipment.
