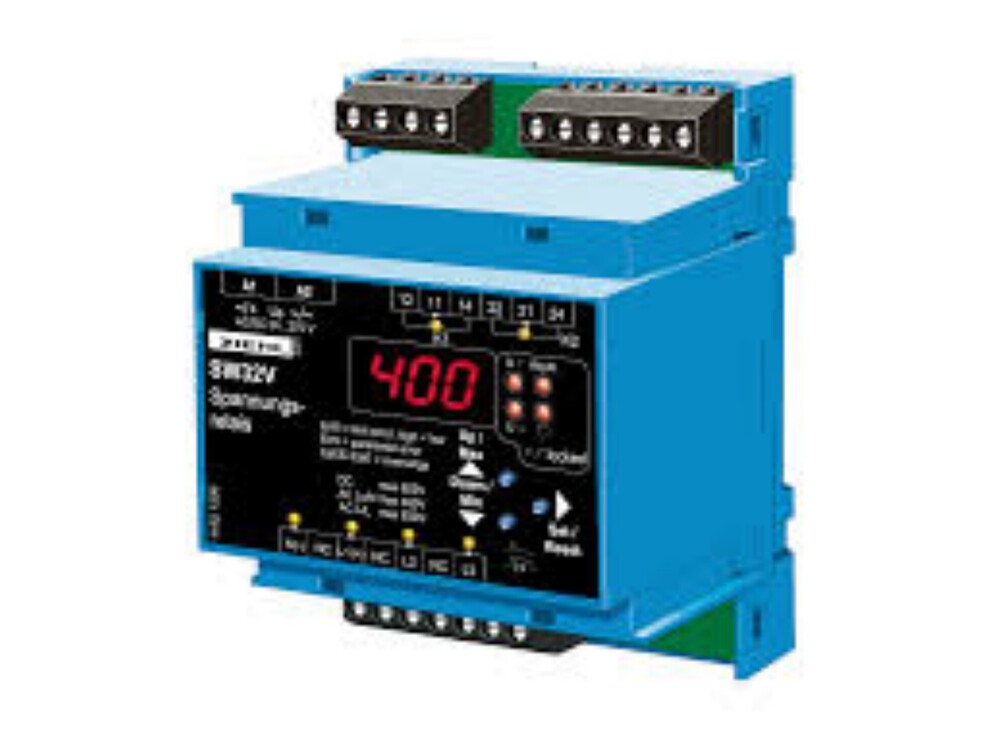

Voltage Relay

Get a Price/Quote

MOQ : 1 Unit

Voltage Relay Specification

Contact Material
Silver Alloy

Contact Resistance
50 m

Coil Voltage
230V AC

Protect Feature
Over/Under Voltage Protection

Contact Form
SPDT

Power Consumption
1 W

Coil Power
0.9 W

Dielectiric Strength
2000V AC 1min

Mechanical Life
10,000,000 operations

Product Type
Voltage Protection Relay

Insulation Resistance
100M (500V DC)

Theory
Electromagnetic Relay

Usage
Industrial Automation, Power Distribution

Contact Load
5A @ 250V AC

Operate Time
Under 30 ms

Rated Voltage
230V AC

Supply Terminal
Single Phase

Size
Compact

Color
Black & White

Dimension (L*W*H)
75x22.5x100 mm

Weight
150 g

Voltage Relay Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
1000 Units Per Week

Delivery Time
3 Days

About Voltage Relay

We are a trustworthy manufacturer of Voltage Relay for our huge clientele base. It is used for protection of motors, pumps, transformers, shunt caps etc. from damage due to transient brownouts, blackouts & for auto start stop of AMF panels. A low or high in all or any phase generates a changeover signal. Two potential free c/o contacts are given for breaker tripping. Both time and voltage are settable in our Voltage Relay. We offer Voltage Relay at highly pocket- friendly prices in the market.

Single Phase Three Phase

VMR 160 - 260V TE 200 VMR 300 - 400 V 210

AVR 160 - 260V TE 202 AVR 300 - 400 V 212

OVR 220 - 300V TE 201 OVR 400 - 500 V 211

Size : 70 x 60 x 110 mm

Swift and Reliable Performance

Engineered for fast response, this voltage relay operates within 30 milliseconds, minimizing downtime and protecting equipment efficiently. Its compact footprint allows seamless installation even in constrained control panels, making it a practical addition to modern automation environments.

Enhanced Protection Features

Integrated over and under voltage protection safeguards connected machinery, preventing equipment failure due to electrical anomalies. The robust electromagnetic relay structure, paired with a single-phase supply terminal, assures stability and peace of mind for continuous operation.

Durability and Long Service Life

Benefit from a mechanical life of up to 10,000,000 operations and high-quality silver alloy contacts. These ensure extended functionality and reduced maintenance costs, making this relay a wise investment for manufacturers, suppliers, and traders in India.

FAQs of Voltage Relay:

Q: How does this voltage relay ensure the protection of industrial equipment?

A: The relay continuously monitors the supply voltage, activating its over/under voltage protection feature if the voltage deviates beyond set thresholds. This rapid intervention helps prevent equipment damage caused by power fluctuations.

Q: What are the main advantages of using this relay in automation and power distribution systems?

A: Its compact size, quick operate time under 30 ms, high insulation resistance, and robust contact load capability ensure efficient operation, space savings, and reliable performance in demanding industrial environments.

Q: When is it ideal to install this relay in an industrial setting?

A: This relay is best installed wherever consistent voltage monitoring and switching are necessary, especially in power distribution panels, automation control cabinets, and areas prone to voltage fluctuations.

Q: Where can the relay be integrated within control systems?

A: The relay can be directly mounted inside control panels, circuit breaker boxes, or distribution boards, owing to its compact 75x22.5x100 mm dimensions and single-phase terminal design.

Q: What is the process for installing and wiring the voltage relay?

A: Installation involves securely mounting the relay, connecting the single-phase supply to the specified terminals, and wiring the control and load circuits to the SPDT contacts, following appropriate safety guidelines.

Q: How does the relays compact size benefit industrial implementations?

A: The compact size allows for efficient use of panel space, making it suitable for retrofitting into existing systems or for new installations with limited room, without sacrificing performance.

Q: What are the benefits of the relays silver alloy contacts and high mechanical life?

A: Silver alloy contacts offer low resistance and better conductivity, while a mechanical life of 10 million operations means reduced maintenance and longer-lasting performance, which is critical for continuous industrial use.
